GuangZhou STS Lighting Equipment Co.,Ltd

Product Information

M SPOT 200 is a gobo LED light. Equipped with a 200W LED light, it is one of the necessary products for professional stage performance. It has gobo wheels with fixed gobos as well as rotated gobos, which meets the requirement of many stages. It can produce several lighting effects, such as gobo rotation and shaking, rainbow, focusing, prism effect, zoom in, iris , which makes the gobo effect perfect. It has auto-mode, sound control. It is of energy saving, and environment protection, and fit for all kinds of professional event production.

Parameters

※ HOUSING

◈ Plastic Housing

※ SOURCE

◈ 200W White LED

◈ 50,000 Hours Average LED Life

※ PHOTOMETRIC DATA

(Beam Angle 14°)

◈ 95,900 LUX@1M

◈ 25,800 LUX@2M

◈ 12,050 LUX@3M

(Beam Angle 24°)

◈ 64,200 LUX @1M

◈ 8,400 LUX@2M

◈ 3,130 LUX@3M

※ EFFECTS

◈ 8-Facet and 6-Facet Prism Effect, Prism Rotation,
◈ Gobo Shaking and Rotation, Color Changing, Electric Focusing, Zoom in, Iris,
◈ Strobe/ Pulse: 1-10 times/S
◈ Dimming: 0-100% Linear Electronic

※ COLOR

◈ (1) Color Wheel With 7 Diachronic Colors Plus Open

◈ Split Colors

※ GOBOS

◈ (2) Gobo Wheels
◈ (7) Interchangeable/Rotating Gobos Plus Open
◈ (9) Customizable/Static Gobos Plus Open

※ CONTROL

◈ (18) DMX Channel Modes
◈ 5 Button Touch Control Panel
◈ LCD Menu Display
◈ 3pin DMX In/Out

※ POWER

◈ 100-240V AC, 50/60Hz
◈ 300W Power Consumption

※ SIZE/WEIGHT

◈ Length: 57cm
◈ Width: 43cm
◈ Height: 31cm
◈ Weight: 16.95kg

※ PACKAGE

◈ Packing: 1 in 1

◈ Inner Package: Carton

◈ Outer Package: Carton or Flight Case

Details

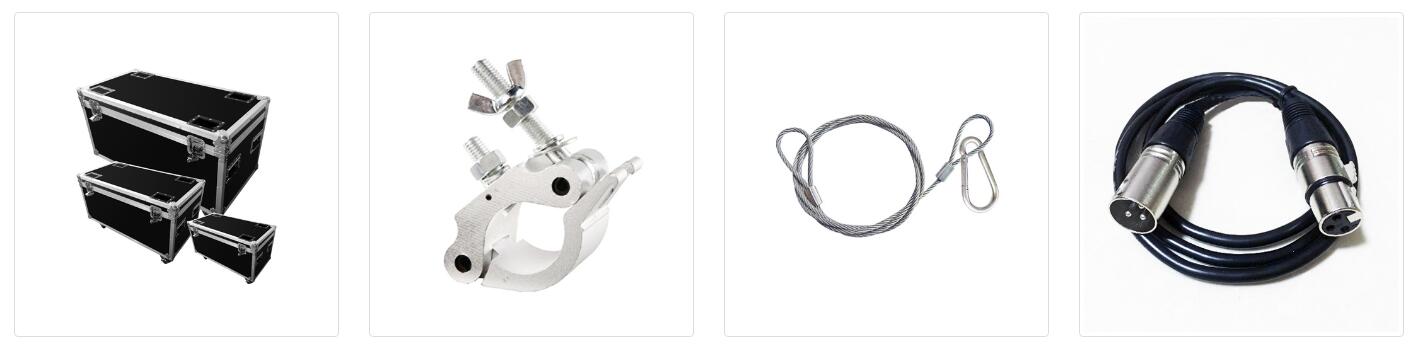

Optional accessories

Features

◈  IP20 Rated
◈  High Bright White LED
◈  Beam Angle 14°-24°
◈  Keen Pan 540° and Tilt 270° Movement
◈  Rotated 8-Facet and 6-Facet Prism With Speed Adjustable and Variable Direction
◈  Infinite Electric Focus With 2m Range, and Shutter With Variable Speed
◈  DMX, Master/Slave, Sound, and Auto With
◈  Built-in Programs, Stand-alone Mode

Application

Videos
