M SPOT 75 is a gobo LED light with high power, which is a necessary product for stage lighting. It is equipped with rotated gobo wheel and color wheel. It can produce several lighting effects, such as gobo shaking, rainbow, prism effect and so on. It has built-in program and auto-mode, easily for installation and transportation. It is of energy saving and fit for professional stage performance.

Parameters

※ HOUSING

◈ Plastic Housing

※ SOURCE

◈ 75W White LED

◈ 50,000 Hours Average LED Life

※ PHOTOMETRIC DATA

◈ 54,000 LUX@1M

※ EFFECTS

◈ 3-Facet Prism Effect

◈ Gobo Rotation and Shaking, Color Changing, Prism Rotation, Focusing

◈ Strobe/ Pulse: 1-10 Times/S

◈ Dimming: 0-100% Linear Electronic

※ COLOR

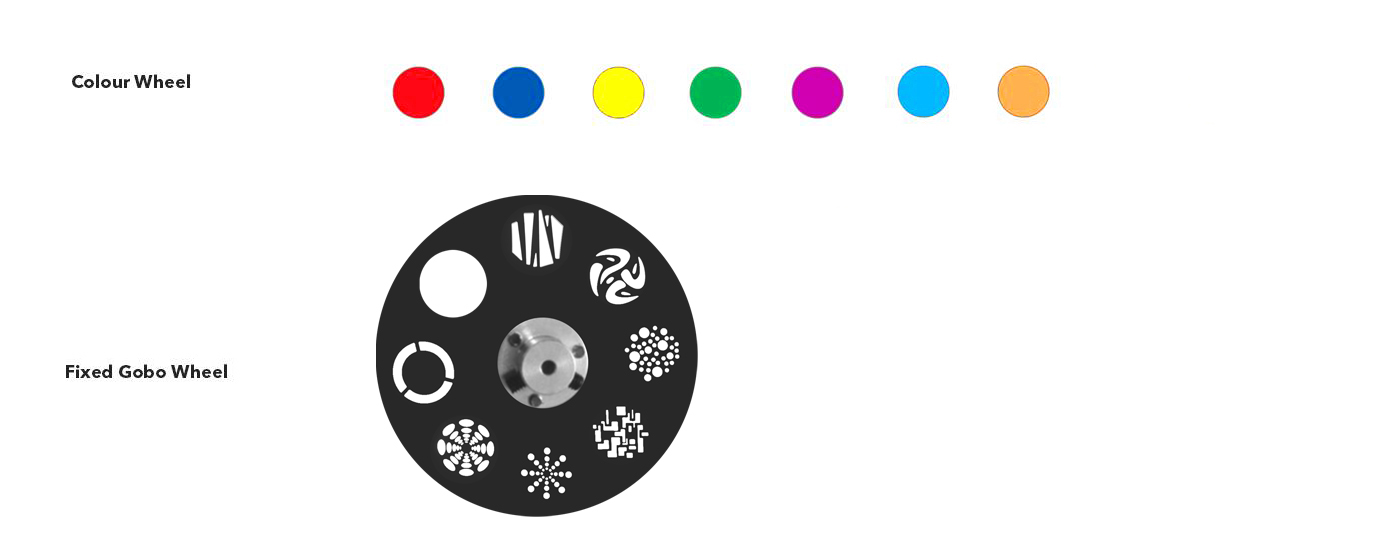

◈ Color Wheel With 8 Diachronic Colors Plus Open

◈ Split Colors

※ GOBOS

◈ （1）Gobo Wheel

◈ Interchangeable/（7）Rotating Gobos Plus Open

※ CONTROL

◈ (15/19) DMX Channel Modes

◈ 4 Button Control Panel

◈ LCD Menu Display

◈ 3pin DMX In/Out

※ POWER

◈ 3pin DMX In/Out

◈ 120W Power Consumption

※ SIZE/WEIGHT

◈ Length: 33cm

◈ Width: 23cm

◈ Height: 44.5cm

◈ Weight: 10.5kg

※ PACKAGE

◈ Packing: 1 in 1

◈ Inner Package: Carton

◈ Outer Package: Carton or Flight Case

Details

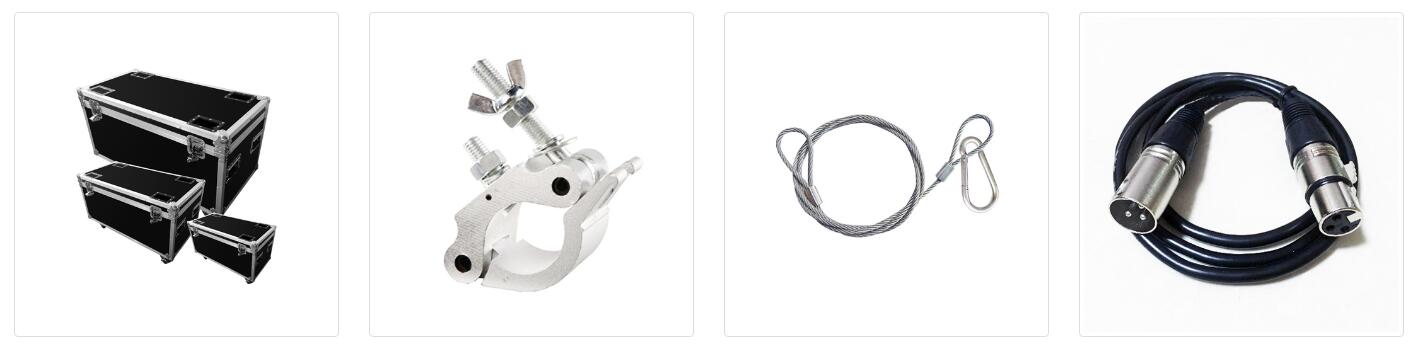

Optional accessories

Features

◈ IP20 Rated
◈ High Bright White LED
◈ Low Power Consumption
◈ Beam Angle 13°
◈ Keen Pan 540° and Tilt 270° Movement
◈ Rotated 3-Facet Prism With Speed Adjustable and Variable Direction
◈ Infinite Electric Focus With 2m Range, and Shutter With Variable Speed
◈ DMX, Master/Slave, Sound, and Auto With Built-in Programs, Stand-alone Mode
