GuangZhou STS Lighting Equipment Co.,Ltd

Product Information

SHARK 800 is a new 550W LED with high power , which is a necessary product for stage lighting.It has hybrid functions of spot wash beam and profile,advanced framing system.It is equipped withrotated gobo wheel and color wheel. It can produce several lighting effects, such as gobo shake, rotation, rainbow, frost, focusing, zoom in/out, prism effect and so on.It has built-in program and auto-mode, easily for installation and transportation.It is fit for professional stage performance.

Parameters

※ HOUSING

◈ Plastic Housing

※ SOURCE

◈ Lamp: 550W White LED

◈ 2,0000 Hour Average Life
◈ CCT: 6300K
◈ Life: ＞20,000H
◈ CRI: ≥76/90

※ PHOTOMETRIC DATA

◈ Beam Angle 6°

◈ 28,000 LUX@5M

◈ Beam Angle 60°

◈ 800 LUX@5M

※ MOVEMENT

◈ Pan movement: 540° (3-motor 16bit )

◈ Tilt movement: 270° (3-motor 16 bit)

◈ Advanced motion system: auto

◈ Repositioning, fast, quiet and smooth

※ COLOR

◈ 1 Color wheel: 5 static colors + open

◈ CMY color mixing
◈ CTO linear (2700K-8000K)

◈ Split colors, color change and rainbow effect

※ GOBOS

◈ 1 rotating gobo wheel: 6 interchangeable gobos +open,

gobos rotation and shaking

◈ 1 Static gobo wheel: 7 interchangeable gobos + open,gobo wheel rotation

◈ 1 static effect gobo: 1 corrugated gobo, can be superimposed with other gobos

and make dynamic effects, such as: moving flame, corrugated water, etc.

※ DISPLAY

◈ LCD colorful display,touch screen and 4 menu buttons

◈ Battery operated for fast addressing and setting

◈ DMX In/Out: 3-pin & 5-pin XLR

※ POWER

◈ 100-240V AC, 50/60Hz

◈ 800W Power Consumption

※ SIZE/WEIGHT

◈ Length: 46.4cm

◈ Width: 30.4cm

◈ Height: 78.4cm

◈ Weight: 37.5kg

※ SOFTWARE

◈ Built-in programs are available

◈ Upgrades: fast and convenient using,uploader over DMX
◈ RDM compatible,remote reset DMX address, fixture reset,
◈ Control mode: DMX512,Auto,Sound,Stand-alone

and Master-Slave mode

※ PACKAGE

◈ Packing: 1 in 1

◈ Package: Flight Case with lamp hook

Details

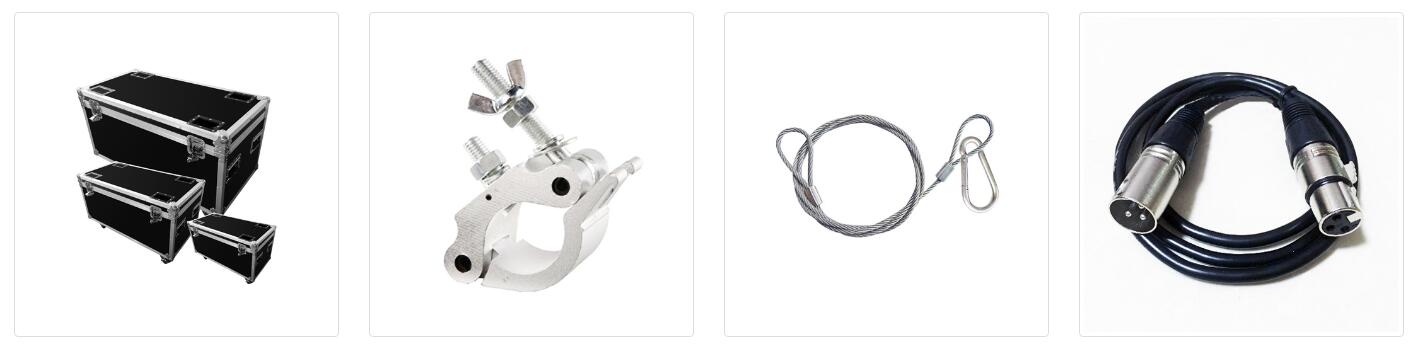

Optional accessories

Features

◈ IP20 Rated
◈ Rotating prism: 4-facet prism
◈ Shutter and Strobe: electronic strobe, variable from 1-25Hz or random
◈ Dimming: 0-100% linear dimming
◈ Frost: 0-100% linear frost
◈ Focus:0-100% focus
◈ Iris:5-100% linear iris
◈ Zoom beam angle: 6°- 60°linear zoom
◈ Animation wheel: special dynamic flame or water effect
◈ Framing system: 4 plates cut,with the ability to create different shapes
◈ Framing rotation of 90°

Application
