GuangZhou STS Lighting Equipment Co.,Ltd

Product Information

M SPOT 120SW Led 120w Spot/Wash 2in1 Hybrid Moving Headis a new spot/wash 2in1 hybrid moving head LED light. Equipped with 120W high power white led and 6pcs 12w RGBWA+UV 6in1 Led , The installation of the projector has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation.

Parameters

※ HOUSING

◈ Plastic Housing

※ SOURCE

◈ 120w high power white led

◈ 6pcs 12W RGBWA+ UV 6in1 led

◈ 50,000 Hours Average LED Life

※ PHOTOMETRIC DATA

◈ 124500Lux@1M@13°
◈ Beam Angle:spot 13°, wash 35°

◈ Wide Spot CW: 1m 124500 Lux,3m /15100 Lux.5m /5400 Lux
◈ Wash effect Red: 1m /800 Lux, 3m /80 Lux, 5m /32 Lux
◈ Wash effect Green: 1m /1430 Lux, 3m /150 Lux, 5m /56 Lux
◈ Wash effect Blue: 1m /1900Lux, 3m /190Lux, 5m /69Lux
◈ Wash effect White: 1m /1300 Lux, 3m /150 Lux, 5m /58 Lux
◈ Wash effect A amber: 1m /350Lux, 3m /40Lux, 5m /16 Lux
◈ Wash effect UV: 1m /300 Lux, 3m /30 Lux, 5m /14 Lux
◈ Wash effect all: 1m /6080 Lux, 3m /660 Lux,5m /242 Lux

※ EFFECTS

◈ Gobo Shaking and Rotation, Color Changing

◈ Strobe/ Pulse: 1~10 times/S
◈ Dimming: 0~100% Linear Electronic

※ COLOR

◈ 1 Color Wheel With 7 Diachronic Colors Plus Open
◈ RGBWA+UV mixing

※ GOBOS

◈ 1 Fixed gobo wheel with 7 dobos plus open
◈ 1 Rotated gobo wheel with 6 rotated interchangeable dobos plus open

※ CONTROL

◈ (25) DMX Channel
◈ Tilt fine:270° Exact positioning (16 bit resolution)

◈ Pan fine:540° Exact positioning (16 bit resolution)

◈ Focus Function

◈ Frost effect

※ POWER

◈ 100-250V AC, 50/60Hz
◈ 200W Power Consumption

※ SIZE/WEIGHT

◈ Length: 265mm

◈ Width: 205mm

◈ Height: 375mm

◈ N.W.:6.10kg

◈ G.W.:8.20kg

Details

Fixed gobo wheel

Rotated gobo wheel

Color wheel

Dimension

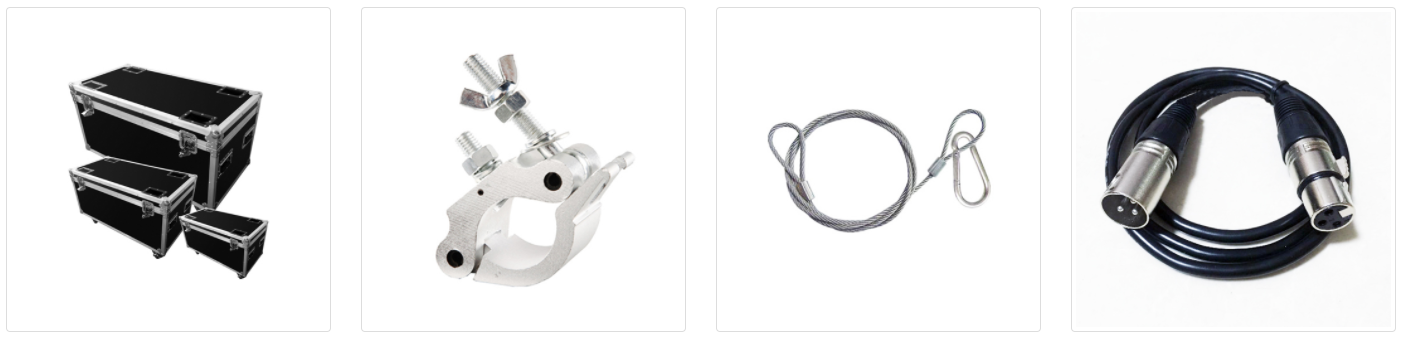

Optional accessories

Features

◈ 100V-240V AC,50Hz/60Hz
◈ 120w high power LED + 6pcs 12W RGBWA+ UV 6in1 led
◈124500Lux@1M@13°
◈ Beam Angle:spot 13°, wash 35°
◈ 25 DMX channel
◈ Rotated gobo wheel with 6 rotated interchangeable gobos plus open.
◈ Static gobo wheel with 7 fixed gobos plus open
◈ Color wheel with 7 diachronic colors plus open
◈ Rotated 4 facet prism with speed adjustable and variable direction
◈ Focus Function
◈ Frost effect
◈ 0~100% linear dimmer and 1-20 times/sec high speed electronic strobe
◈ DMX512, master-slave,Auto and sound activated controllable
◈ Tilt fine:270° Exact positioning (16 bit resolution)
◈ Pan fine:540° Exact positioning (16 bit resolution)
◈ Dimensions:265x205x375mm
◈ N.W.:6.1kg G.W.:8.2kg

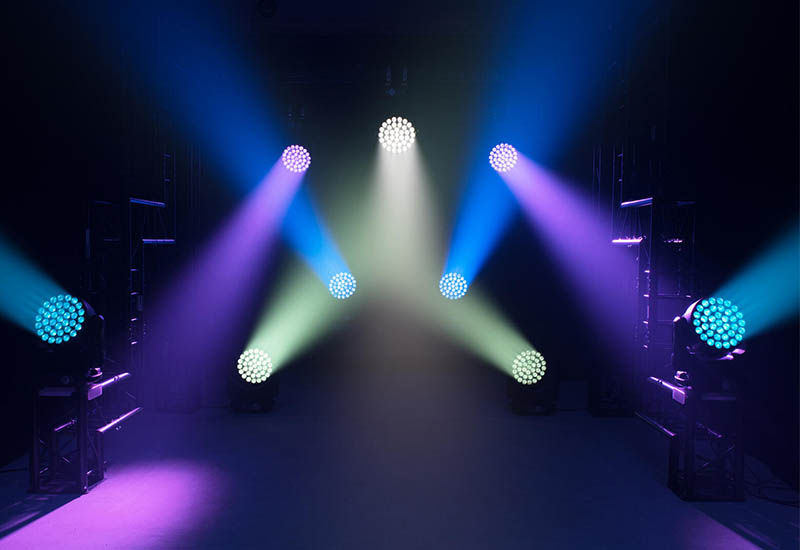

Application

Videos
