Product Information

The M WASH740Z has a small and lightweight size, powerful light output, energy conservation and environmental protection, and integrates powerful beam and dyeing functions. Matched with 7 40W RGBW LED light beads, with adjustable light beads, equipped with a linear focusing system and bee eye effect, with a zoom range of 5 ° to 40 °, stable and uniform colors within the dimming range, making it easy to create a dynamic and psychedelic world. Multiple speed strobe effects, 0-100% smooth dimming function, built-in 4 modes, meet the dyeing needs of a wider range of performance occasions.

Parameters

※ HOUSING

◈ Plastic Housing

※ SOURCE

◈ Light Source:7pcs 40W RGBW LED

◈ 20,000 Hour Average LED Life

※ PHOTOMETRIC DATA

◈ Beam Angle 5°

◈ 54,000 LUX@1M

◈ 31,300 LUX@3M

◈ 13,530 LUX@5M

◈ Beam Angle 40°

◈ 12,850 LUX@1M

◈ 1,701 LUX@3M

◈ 505 LUX@5M

※ EFFECTS

◈ Color Changing, Separate Area Control

◈ Zoom In, Variable Beam Angle: 5°-40°

◈ Strobe/ Pulse: 1-10 times/S

◈ Dimming: 0-100% Linear Electronic

※ COLOR

◈ GRBW Color Mixing

※ CONTROL

◈ (23/35/51) DMX Channel Modes

◈ 5 Button Control Panel

◈ LCD Menu Display

◈ 3pin DMX In/Out

※ POWER

◈ 100-240V AC, 50/60Hz

◈ 375W Power Consumption

※ SIZE/WEIGHT

◈ Length: 26.00cm

◈ Width: 22.00cm

◈Height:40.00cm

◈ Weight: 11.20kg

PACKAGE

◈ Packing: 1 in 1

◈ Inner Package: Carton

◈ Outer Package: Carton or Flight Case

Details

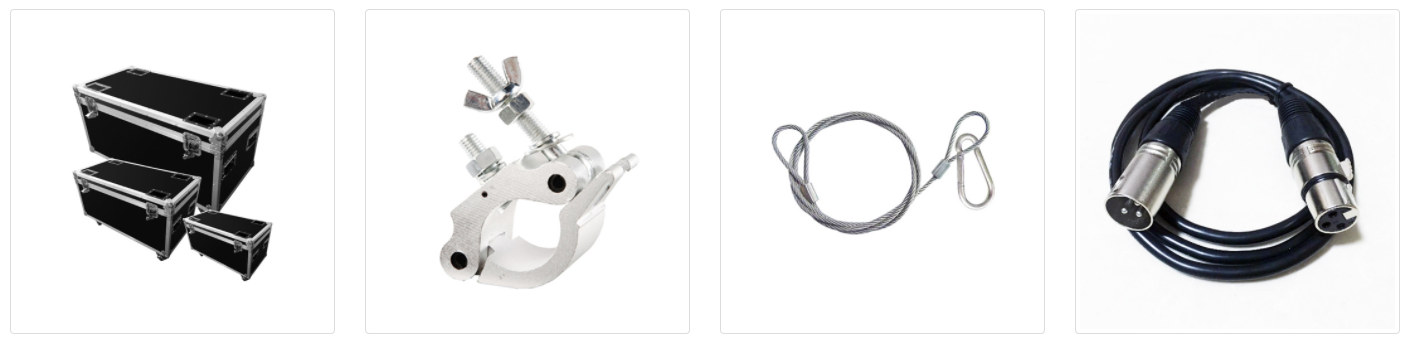

Optional accessories

Features

◈ Light Source:7pcs 40W RGBW LED

◈ Light Source life:>20000 hours

◈ Keen Pan 540° And Tilt 270° Movement

◈ Svstem:RGBW color mixing

◈ Color temperature:2700K-8000K

◈ Zoom range: 5-40°

◈ Dimming:0-100% linear dimming

◈ Strobe:up to 25Hz. random and pulse strobePixel control and bee eye effect

◈ Protection class:lP20

◈ RMD for DMX address setting

◈ 23/35/51 channels in optional

◈ 1 meters 5°54000lux,4012850lux

◈ 3 meters 5°31300lux. 401701lux

◈ 5 meters 5°13530lux,40505lux
