Product Information

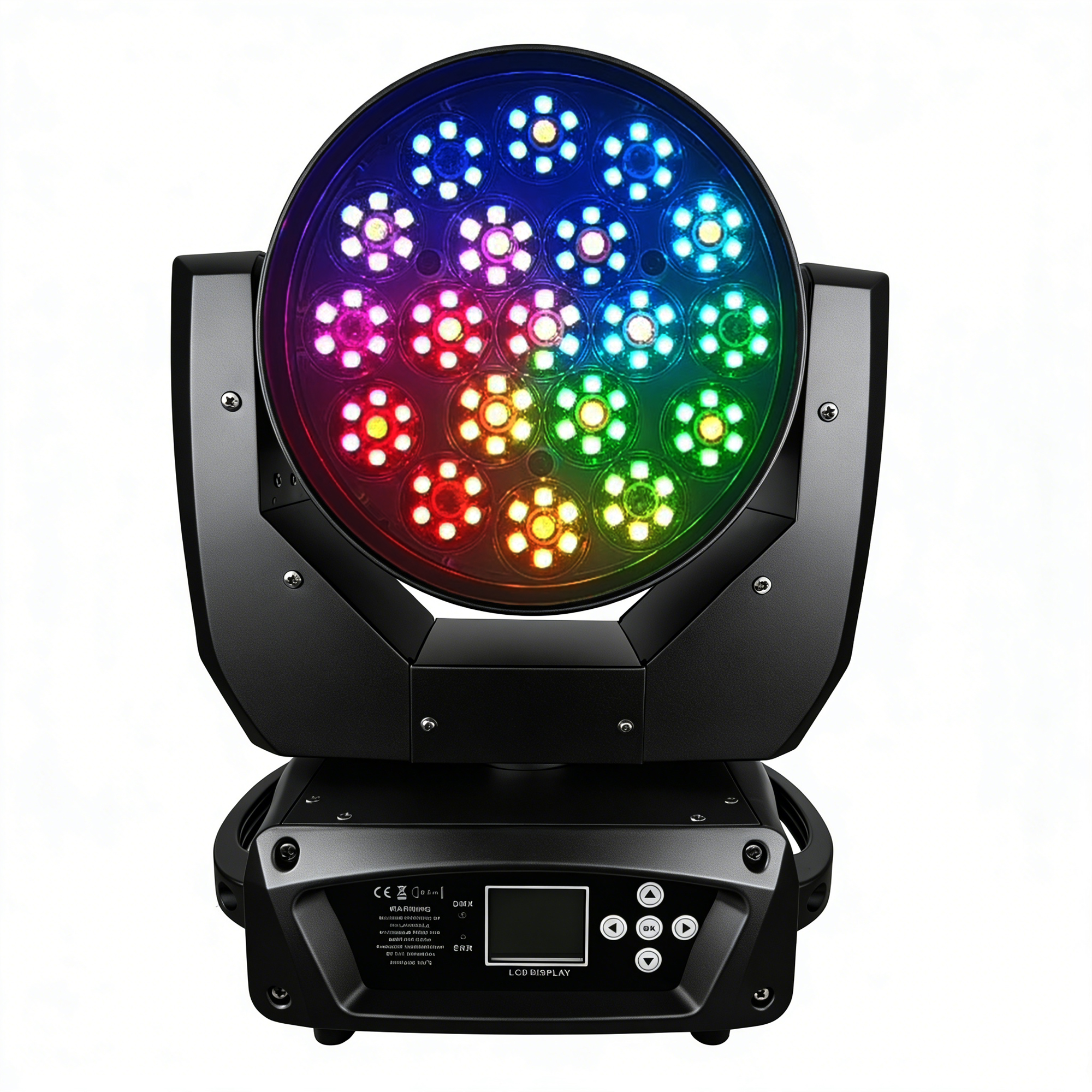

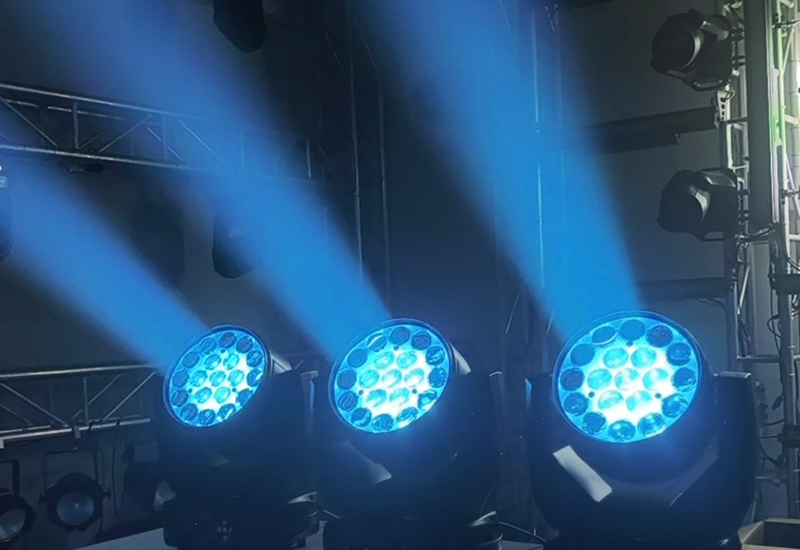

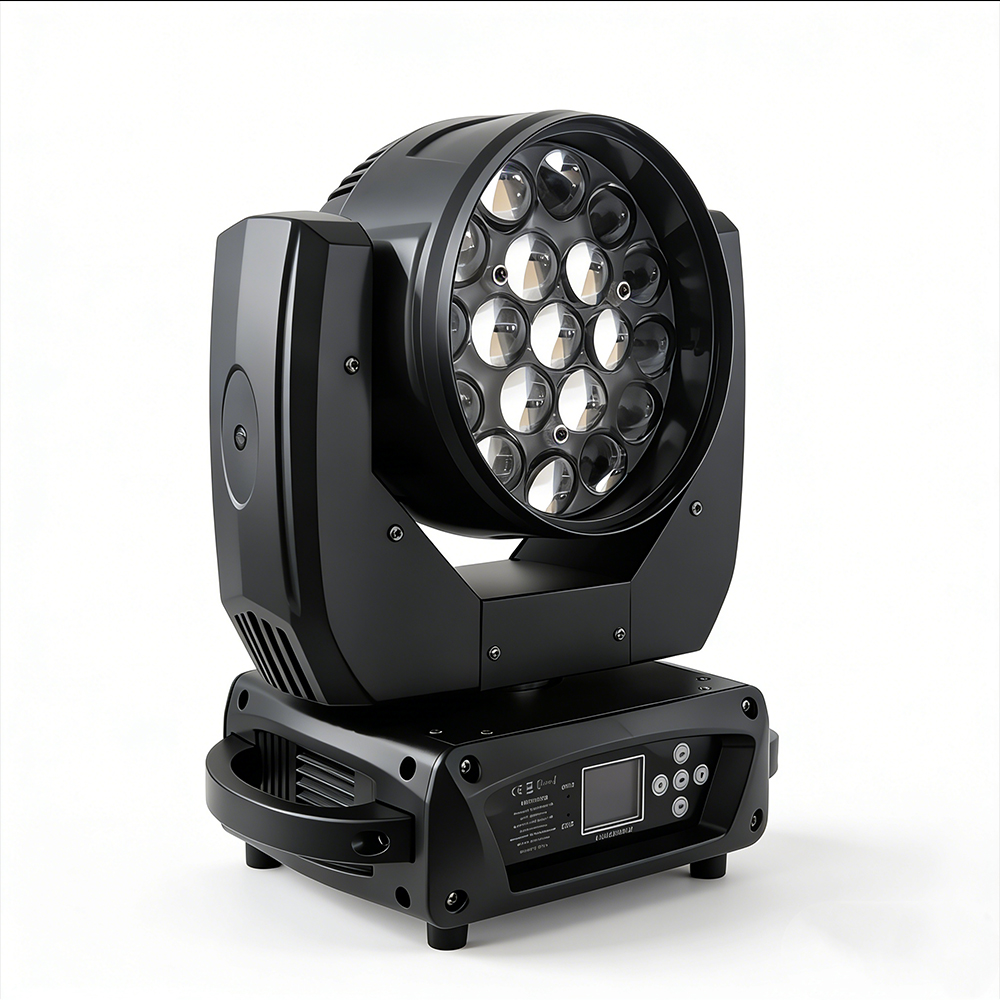

M WASH 1940Z is a popular stage application with a new type of washing lamp. The main light is 19pcs, 40W, bright RGBW 4-in-1 LED. The lamp beads can be controlled through a single point and focus, with a bee eye effect and a multi angle viewing angle outer ring. The LED color magic color serves as supplementary light, meeting stage performance requirements and can be used together with other mobile gobo or mobile beam lights. Widely used in live performances, theaters, television studios, discos, etc.

Parameters

※ HOUSING

◈ Plastic Housing

※ SOURCE

◈ main light 19pcs 40W bright RGBW 4 in 1 LED,Auxiliary light 54pcs 5050RGB

◈ 50,000 Hour Average LED Life

※ PHOTOMETRIC DATA

◈ Beam Angle 7°

◈ 65,000 LUX@3M

◈ 31,000 LUX@5M

◈ Beam Angle 45°

◈ 4,310 LUX@3M

◈ 1,650 LUX@5M

※ EFFECTS

◈ Color Changing, Separate Area Control

◈ Zoom In, Variable Beam Angle: 7°-45°

◈ Strobe/ Pulse: 1-10 times/S

◈ Dimming: 0-100% Linear Electronic

※ COLOR

◈ GRBW Color Mixing

※ CONTROL

◈ (23/33/94) DMX Channel Modes

◈ 5 Button Control Panel

◈ LCD Menu Display

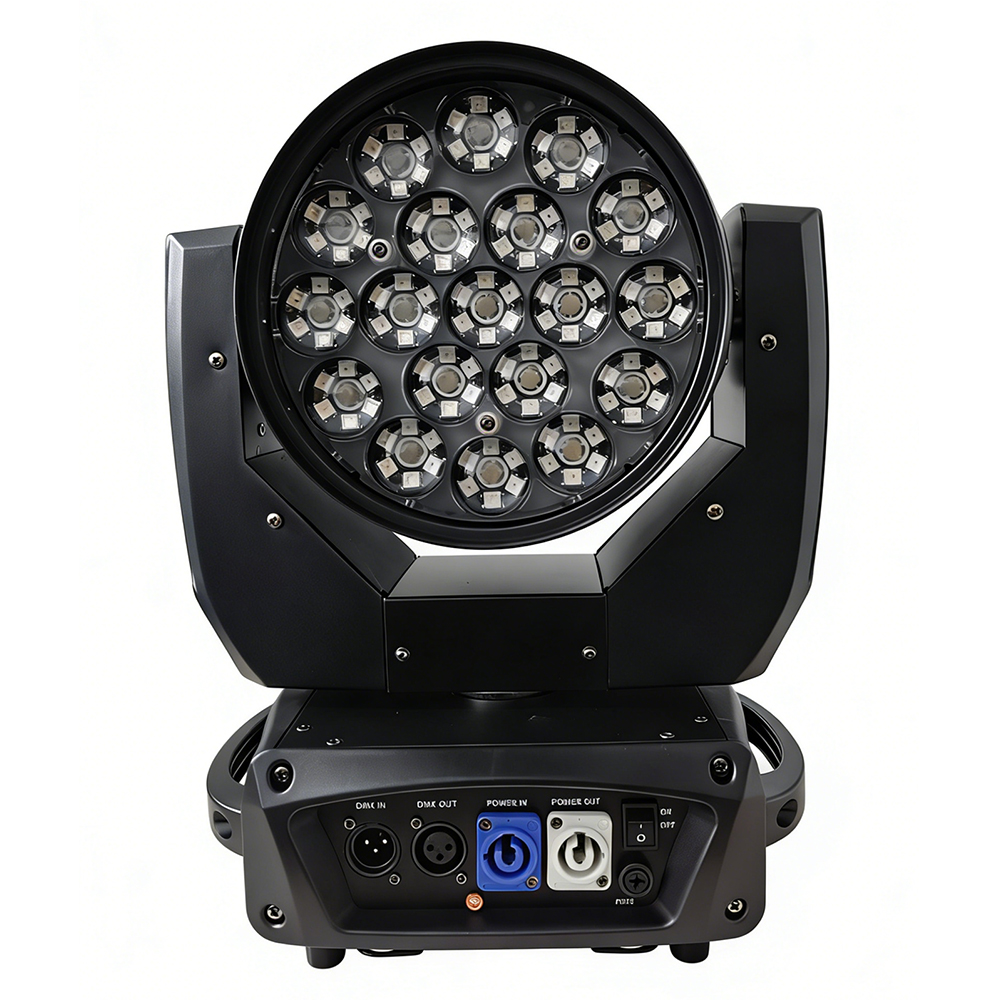

◈ 3pin DMX In/Out

※ POWER

◈ 100-240V AC, 50/60Hz

◈ 850W Power Consumption

※ SIZE/WEIGHT

◈ Length: 37.50cm

◈ Width: 26.20cm

◈ Height: 49.00cm

◈ Weight: 13.5kg

※ PACKAGE

◈ Packing: 1 in 1

◈ Inner Package: Carton

◈ Outer Package: Carton or Flight Case

Details

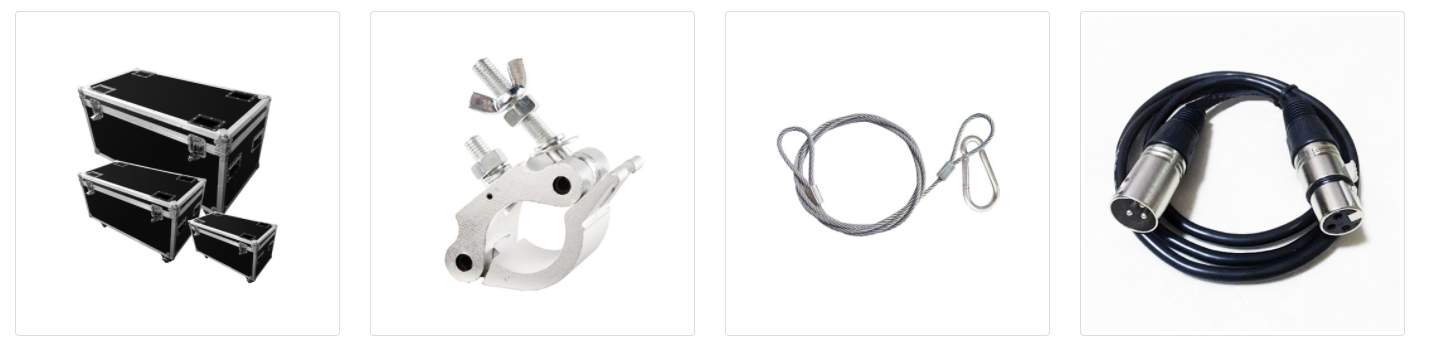

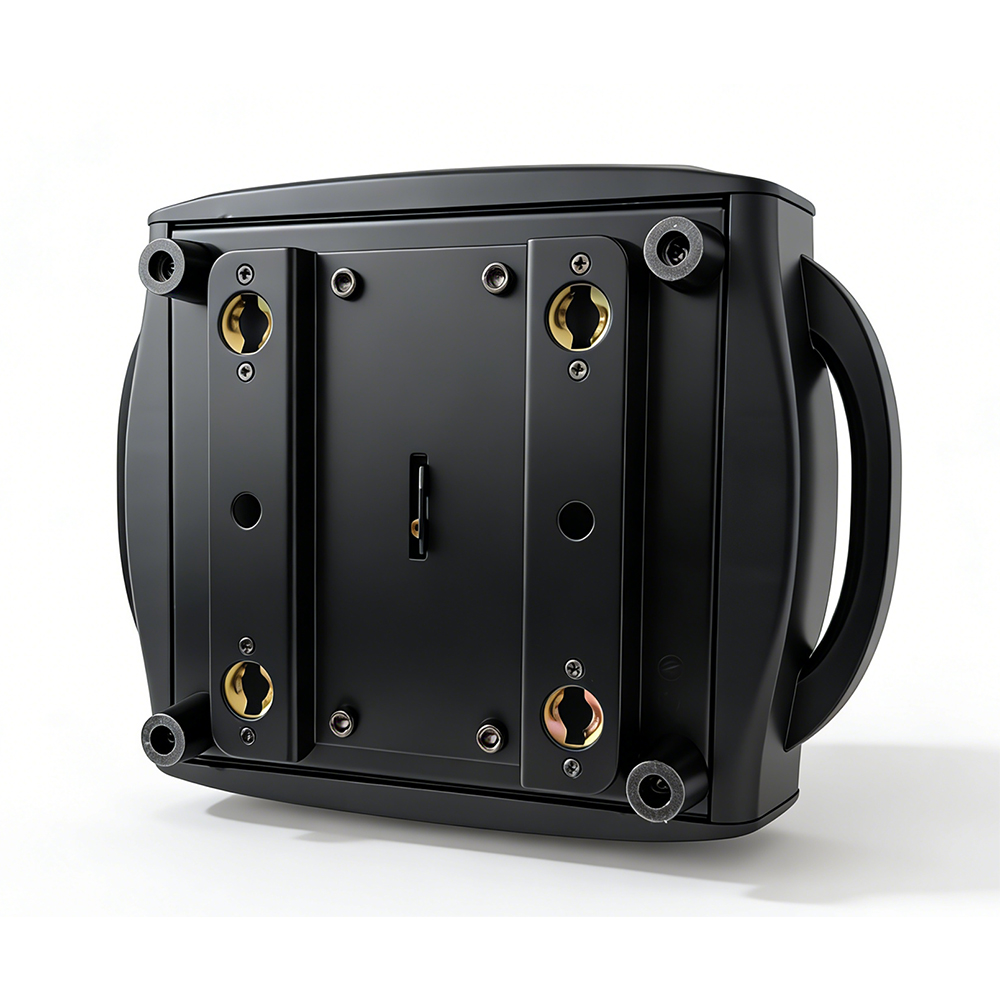

Optional accessories

Features

◈ main light 19pcs 40W bright RGBW 4 in 1 LED,Auxiliary light 54pcs 5050RGB
◈ Light source life: > 20000 hours
◈ System: RGBW color mixing system
◈ Color temperature: 2700K-8000K
◈ Beam Angle: 7°-45°
◈ Keen Pan 540° and Tilt 270° Movement
◈ Dimming:0-100% linear dimming
◈ Strobe: up to 25HZ,optional random strobe

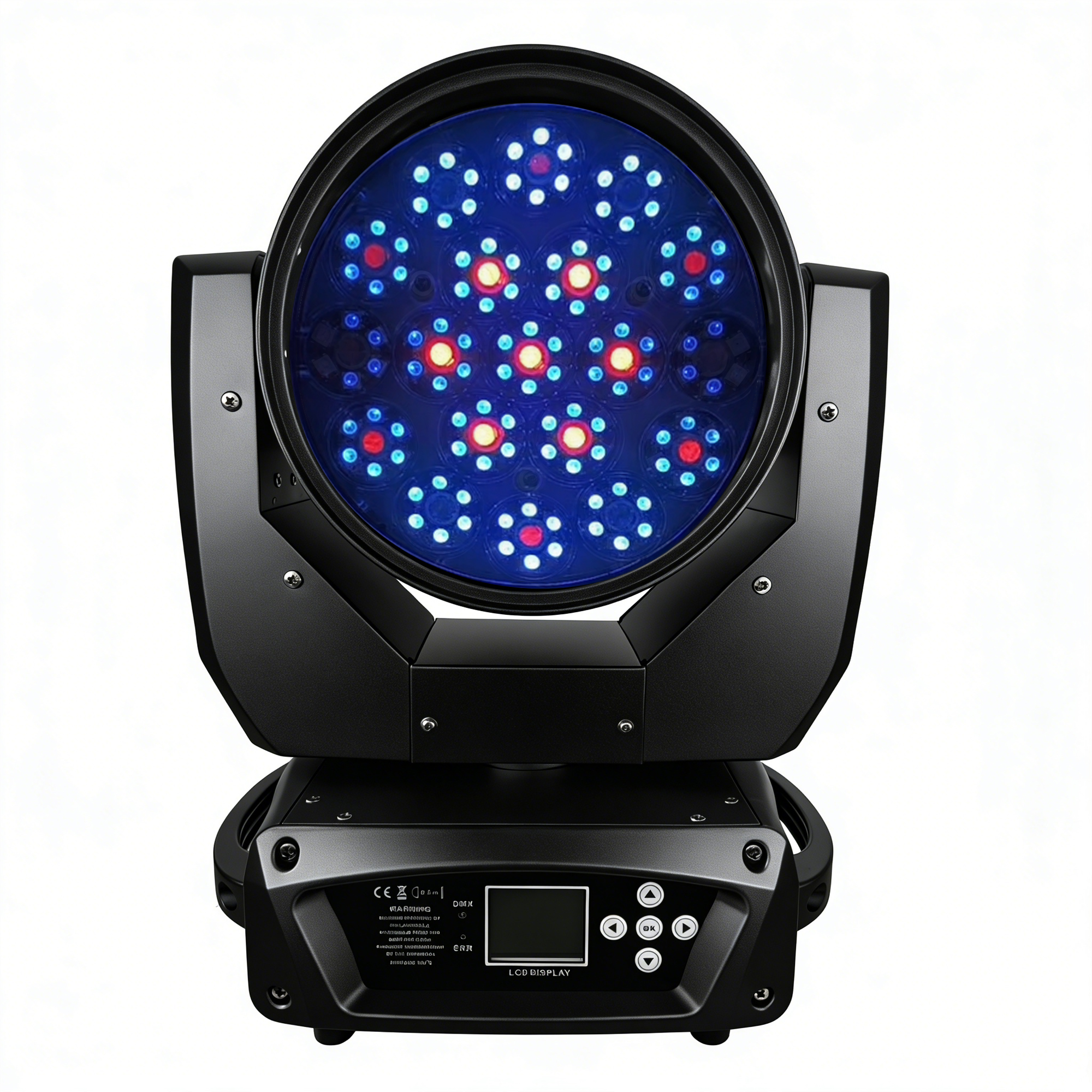

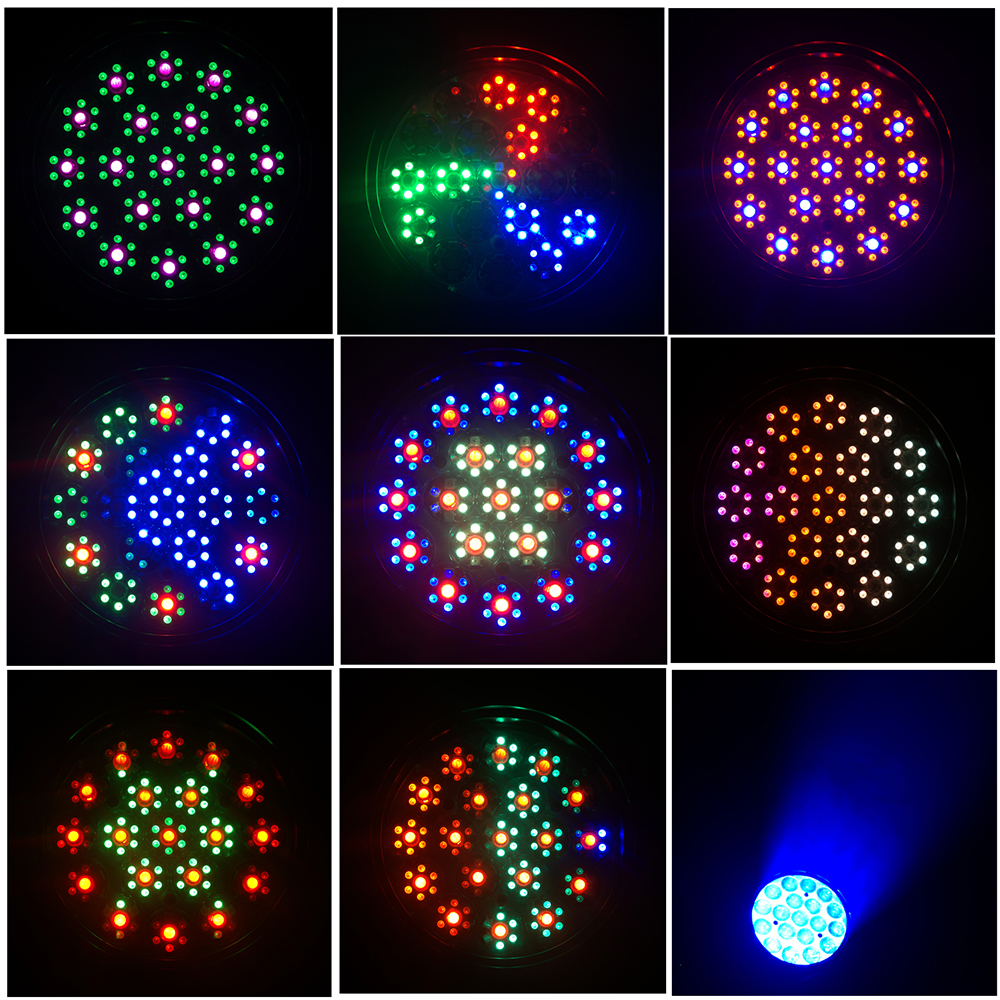

◈ Lamp beads can be controlled by single point,and focus, bee eye effect, outer ring with LED colorful magic color as supplementary light
◈ Protection class: IP20
◈ Multiple built-in programs,Upgrade via DMX cable,RDM
◈ 3 channel modes.18/30//94 in options
◈ Chinese and English display can be switched
◈ Illumination:3 meters 7°65000lux, 45°4310lux. 5 meters 7°31000lux,45°1650lux
